Parts manufacturing
Custom parts, prototypes and series — cut or printed
Do you need custom parts, rapid prototypes or complex series, metal cut or additively manufactured? Upload your drawing and receive an offer almost immediately. We can support you with engineering as well.
How it works
From drawing to finished part
This is how it works: four steps from the drawing on your screen to the measured part in your hand.
-
Choose the process
CNC or additive. If you are not sure, send the part and we will tell you which one gives you the better part for the money.
-
Upload the drawing
Drawing or 3D model, material, coating and quantity. Single parts and series are handled the same way.
-
See the price, or get a written quote
The CNC calculator shows an indicative price on the spot. Everything beyond standard — special materials, tight tolerances, assemblies, additive parts — we quote in writing.
-
We machine, print and measure
Production runs on the machine park below, with final inspection on calibrated measuring equipment. Documentation on request.

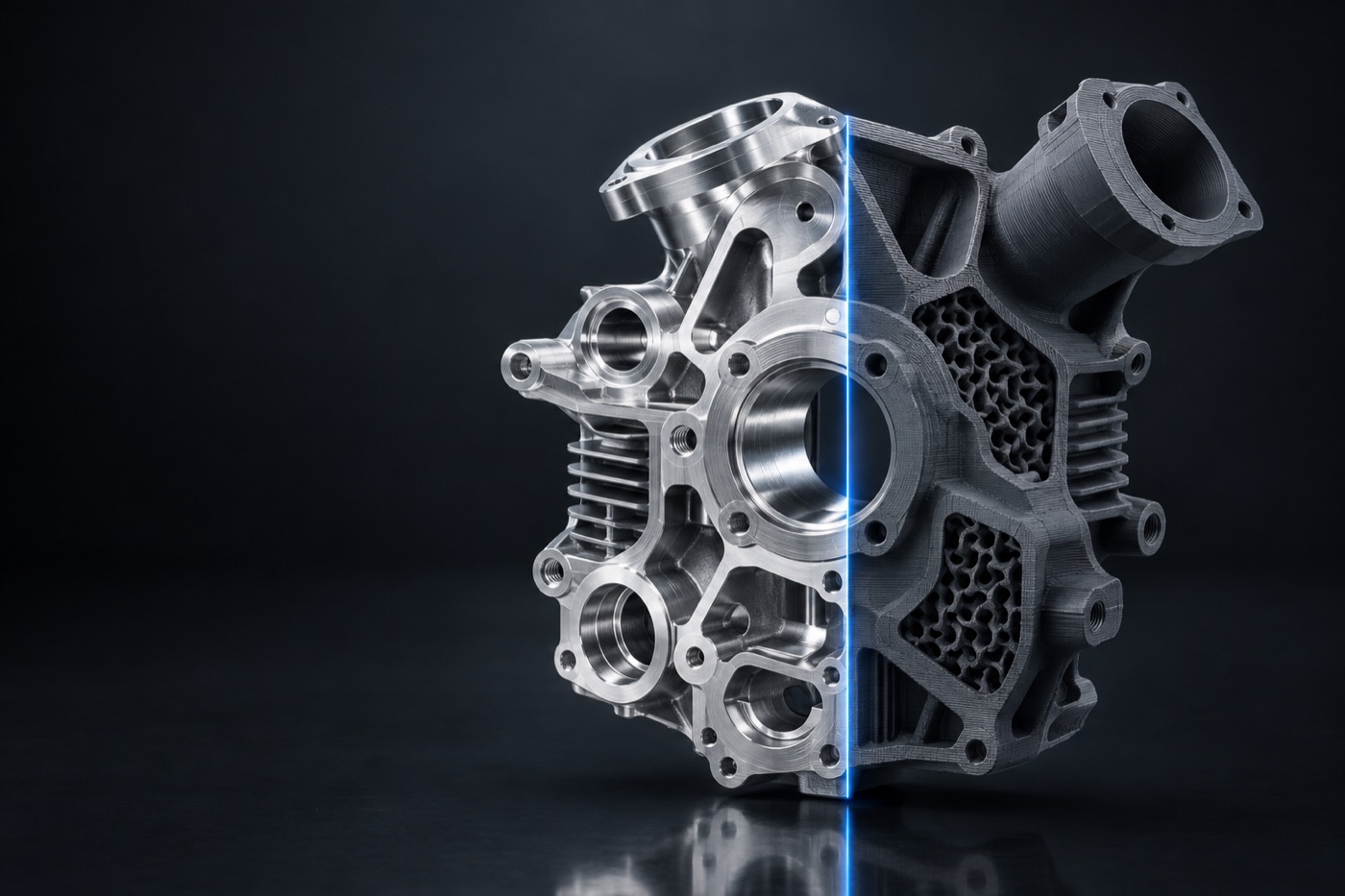

First: cut or printed?
Both routes start with your drawing. Pick the process and you land in the right place — the price calculator for machined parts, or straight to us for additive parts.
Route 1
CNC machining
Turned and milled parts, single pieces or series, in metal and plastic. Upload the drawing, choose material, coating and quantity, and the calculator returns an indicative price while you are still on the page.
- Indicative price immediately
- 78 machines, travels up to 2000 × 1750 × 750 mm
- Final inspection on calibrated equipment
Route 2
Additive manufacturing
Prototypes, jigs, fixtures and geometries no cutter reaches. Send us the 3D model with the load case and the environment — we come back with a written quote and, where it helps, with the advice to machine it after all.
- Quote by e-mail, usually within two working days
- Printed and machined features in one assembly
- Engineering support on request
CNC manufacturing
78 machines in a climate-controlled shop
Metal cutting runs in our own production: 78 machines and 12 high-end measuring instruments in a climate-controlled hall. Milling, turning, grinding, EDM, laser cutting and robot welding are under one roof, so your part does not travel between suppliers.
- Travels up to 2000 × 1750 × 750 mm
- 3-, 4- and 5-axis, horizontal and vertical
- Driven tools, counter spindle, bar work
- Surface and cylindrical grinding
- Wire and die sinking EDM
- CMM, measuring arm, image and roughness measurement
Machining centres · 39
Milling, 3- to 5-axis, vertical and horizontal
| Make and model | Travel / working range mm | Type | Qty. |
|---|---|---|---|
| Hartford PRO-2150 | 2000 / 1750 / 750 | portal | 1 |
| Hardinge Bridgeport GX1600 / H320 | 1600 / 700 / 635 | vertical | 1 |
| OKK VM76R | 1540 / 760 / 660 | vertical | 1 |
| MaxMill NVM-1166 | 1200 / 850 / 750 | vertical | 2 |
| Mazak VCN-530C SG | 1050 / 530 / 510 | vertical | 1 |
| Dahlih MCV-1020BA | 1000 / 550 / 550 | vertical | 1 |
| Manford | 850–1000 / 500–550 / 550 | vertical | 2 |
| Yamazaki | 760 / 400 / 440 | vertical | 6 |
| Akira Seiki Performa | 760 / 400 / 440 | vertical | 1 |
| Brother S1000X1 | 600 / 500 / 450 | vertical | 1 |
| Brother S500X1 | 550 / 400 / 400 | vertical | 7 |
| Okuma & Howa | 550 / 500 / 400 | vertical | 2 |
| Brother M300X3 | — | vertical | 1 |
| Hardinge Bridgeport V480 | — | vertical | 1 |
| Hardinge Bridgeport | — | vertical | 1 |
| Hardinge H320 | — | horizontal | 1 |
| Toyoda FH50 | — | horizontal | 1 |
| Kitamura Mycenter-3XiG | — | vertical | 1 |
| Mori Seiki MT2000 | — | turn-mill | 1 |
| Fanuc Robodrill | — | vertical | 1 |
| Kafo SV-1000 | — | vertical | 1 |
| YDPM EV-1050 | — | vertical | 1 |
| Roku-Roku | — | high speed | 1 |
| Kiwa | — | vertical | 1 |
| Amada | — | laser cutting | 1 |
CNC lathes and turn-mill centres · 21
Driven tools, counter spindle and bar work
| Make and model | Travel / working range mm | Type | Qty. |
|---|---|---|---|
| Goodway GLS-200 / CLS200M | X 300 / Z 250 | turn-mill | 6 |
| Mazak Quick Turn 150 SG / SQT15M | X 300 / Z 250 | turn-mill | 2 |
| Mazak Nexus 150-E | — | turning | 1 |
| Okuma LH35-N | — | turning | 1 |
| Okuma LT10-M | — | turn-mill | 1 |
| Takisawa TCN-2100L3 | — | turning | 2 |
| Takisawa TS-3000YS | — | turn-mill | 1 |
| Takamaz GSL-15 | — | turning | 1 |
| Nakamura-Tome | — | turn-mill | 1 |
| Ikegai Wado FPC-20VT | — | turning | 1 |
| CNC automatic A20-3F1 | — | turning | 1 |
| Okamoto | — | turning | 1 |
| Pinacho | — | turning | 1 |
| Kanazawa Kiko | — | turning | 1 |
Grinding · 4
Surface and cylindrical
| Make and model | Travel / working range mm | Type | Qty. |
|---|---|---|---|
| Okamoto 64DX | 600 / 400 / 200 | surface | 1 |
| Shigiya Seiki | Y 300 / Z 1500 | cylindrical | 1 |
| Toyoso-Kent | Y 300 / Z 1500 | cylindrical | 1 |
| Toyoda | Y 300 / Z 1500 | cylindrical | 1 |
EDM and welding · 4
Hard materials, sharp inner corners and joining
| Make and model | Travel / working range mm | Type | Qty. |
|---|---|---|---|
| Mitsubishi FA10S Advance | Y 350 / Z 300 | wire EDM | 1 |
| OSCARMAX SD350 | Y 350 / Z 300 | die sinking | 1 |
| Moldmaster ZNC-430 | 400 / 300 / 200 | die sinking | 1 |
| OTC Daihen | — | welding robot | 1 |
Conventional machines · 10
For one-offs, rework and fitting
| Make and model | Travel / working range mm | Type | Qty. |
|---|---|---|---|
| Van | 1000 / 300 / 270 | milling | 1 |
| Manford | 1000 / 300 / 220 | milling | 1 |
| Emshu | 700 / 300 / 270 | milling | 1 |
| Shizuoka | 700 / 300 / 270 | milling | 1 |
| Yamasagiken | 700 / 300 / 270 | milling | 1 |
| Okuma & Howa | 700 / 300 / 200 | milling | 2 |
| Makino | 700 / 300 / 200 | milling | 1 |
| Chinhung | Ø 430 × 1000 | turning | 1 |
| LA | Ø 431 × 1000 | turning | 1 |
Quality
Measured before it ships
Twelve measuring instruments cover final inspection, from the first article to the series. Parts for tritium and high vacuum service are inspected to the same standard we apply to our own products.
- Zeiss coordinate measuring machine with CALYPSO, 1200 × 750 × 700 mm

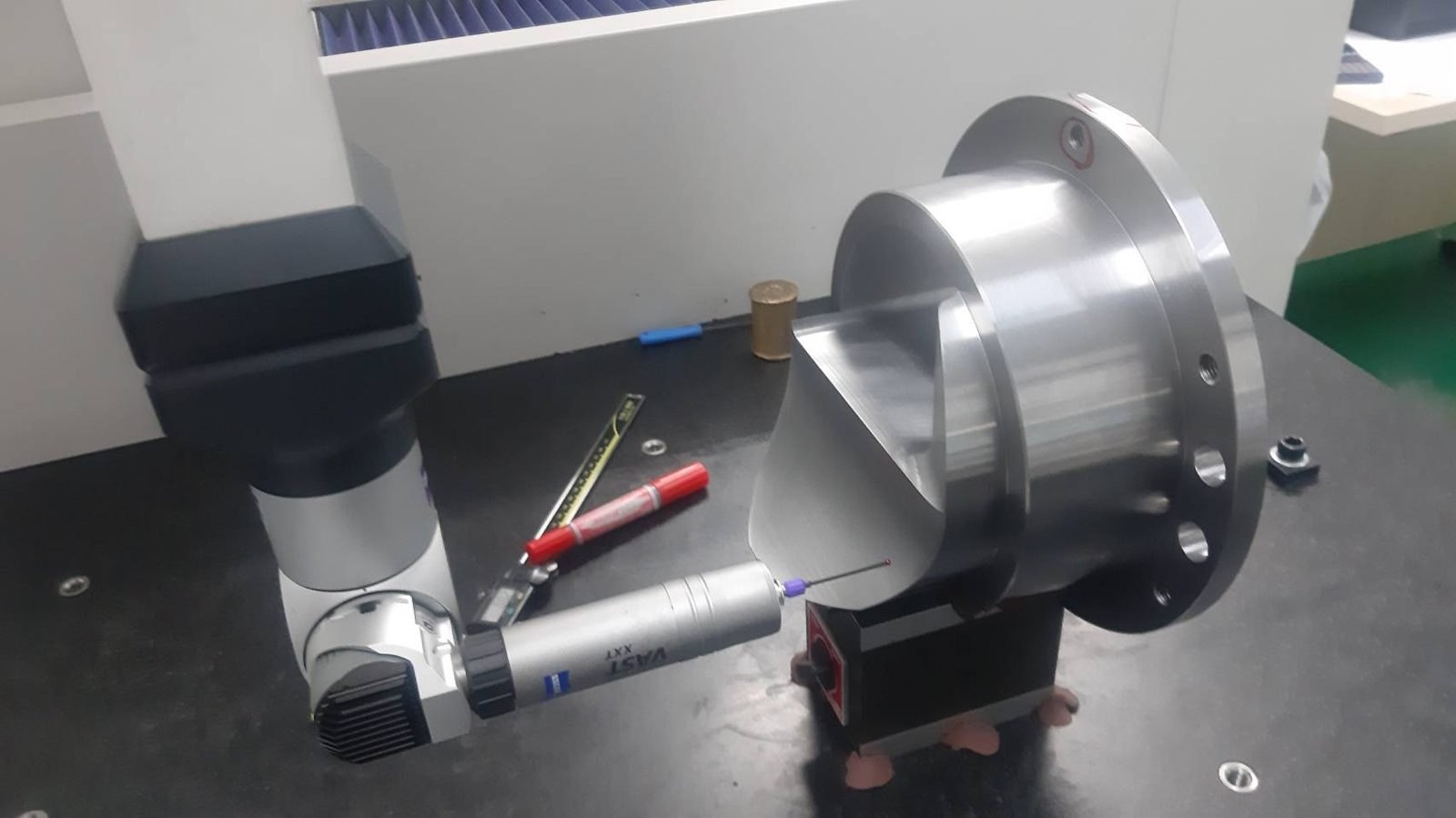

- CimCore CA-7520 measuring arm for large and mounted parts
- Keyence IM-7000 and IM-8000 image dimension measurement
- Keyence XM-1200 handheld coordinate measurement
- Keyence VR-5000 3D profilometer for surfaces and edges
- Mitutoyo Contracer CV-3200 contour and SJ-210 roughness measurement
- Haimer tool presetting, thread and gauge test stations
Additive manufacturing
Printed where printing is the better answer
Additive manufacturing is not a cheaper way to make a turned part — it is the way to make parts that cannot be cut at all, or that are needed tomorrow. We print in house and combine printed and machined features in the same assembly.
Rapid prototypes
A fit check, a handling trial or a design review part, available the next working day instead of the next delivery slot.
Jigs and fixtures
Assembly aids, masks, supports and transport protection, shaped exactly around the part they serve.
Complex geometries
Internal channels, lattices and shapes that no cutter reaches — printed first, then machined where a sealing or fitting surface is needed.
For more information
Send us your drawing
Tell us the part, the quantity and the date you need it. If something is unclear in the drawing, we come back with questions instead of guessing.
